How to Read a Transformer Nameplate: A Nigerian Buyer's Guide

by Elsan Editorial Team Buyer's Guides & Technical Resources 9 min read

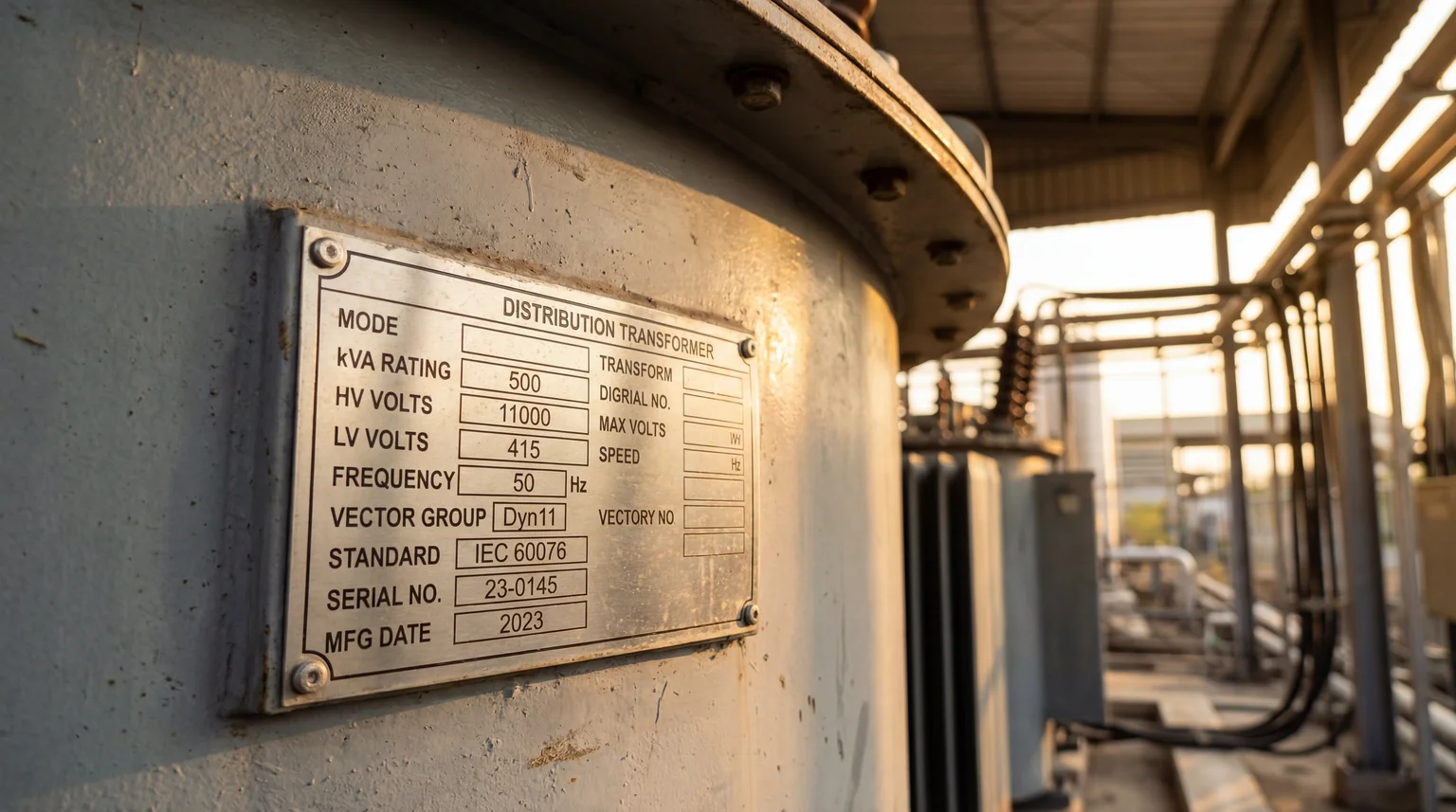

Close-up of a transformer nameplate showing kVA rating, voltage and vector group fields on an oil-immersed distribution transformer in Nigeria

A transformer nameplate is the metal identification plate permanently fixed to every transformer. It displays the unit’s rated capacity (kVA/MVA), primary and secondary voltages, frequency (50 Hz for Nigeria), vector group (commonly Dyn11), cooling class (e.g., ONAN), percentage impedance, insulation class, serial number, manufacturer details, and applicable standards (typically IEC 60076). To read it correctly: match the kVA rating to your load, confirm the voltage matches your grid connection (11 kV or 33 kV primary; 0.415 kV secondary is standard in Nigeria), verify the frequency is 50 Hz, and cross-check the serial number against the factory test certificate before accepting delivery.

Close-up of a transformer nameplate showing kVA rating, voltage and vector group fields on an oil-immersed distribution transformer in Nigeria

Introduction: Why Reading a Nameplate Matters in Nigeria

Nigeria’s power infrastructure presents unique procurement challenges. Buyers — from community associations funding estate transformers to factory owners upgrading industrial substations — frequently receive units that do not match the specification they paid for. The transformer specification plate is your first and most important line of defence.

Every legitimate distribution transformer sold through a credible transformer supplier in Nigeria carries a nameplate that tells you exactly what you have purchased. Learning to decode it protects you against substandard products, prevents costly installation errors, and keeps you compliant with the Nigerian Electricity Management Services Agency (NEMSA) requirements that govern all electrical installations in the country.

This guide walks you through every field on a typical transformer nameplate, explains what to look for in the Nigerian context, highlights red flags, and shows you how to cross-check the plate data against the mandatory factory test certificate.

What Is a Transformer Nameplate?

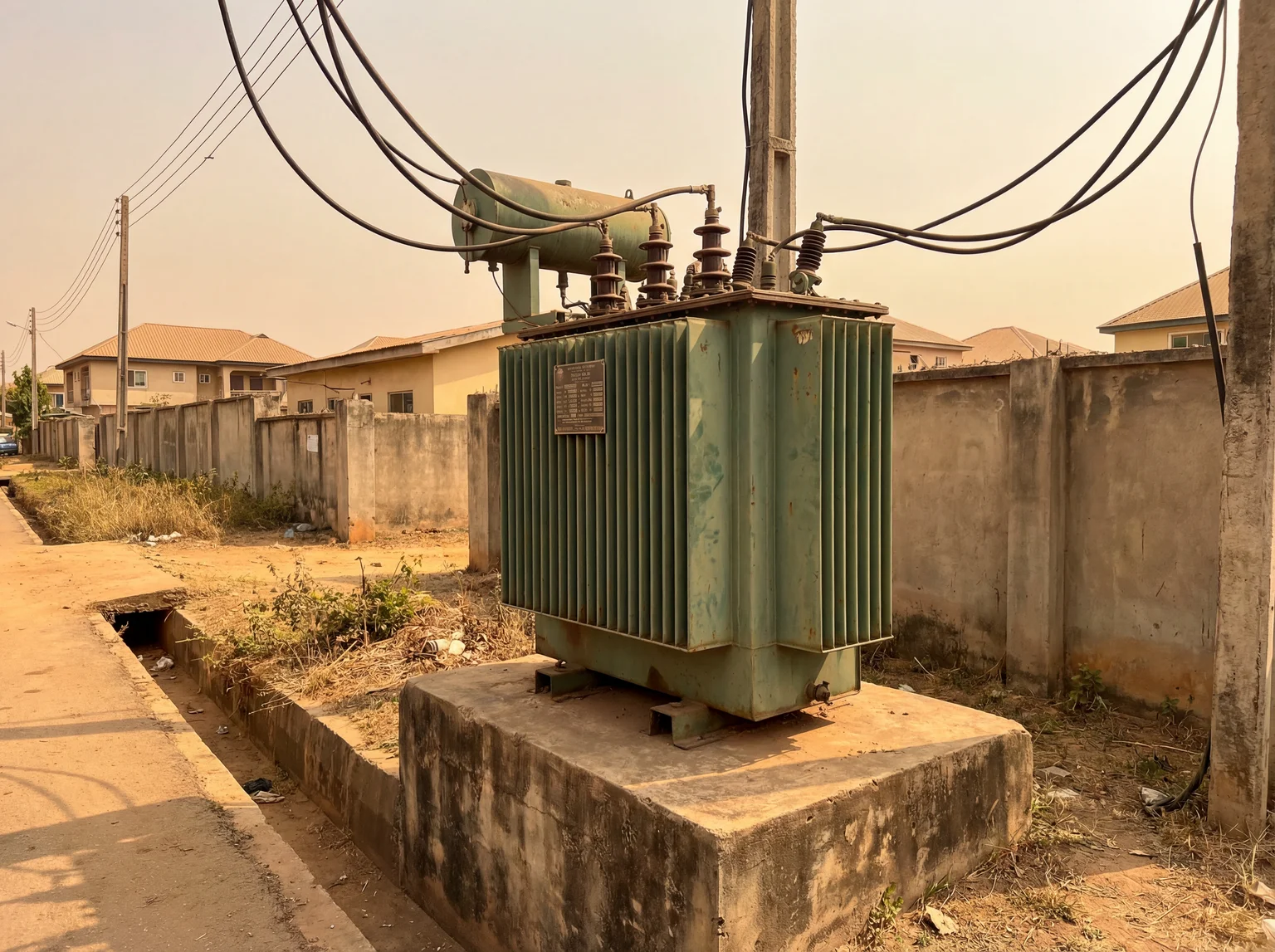

Oil-immersed distribution transformer installed in a Nigerian residential estate showing nameplate location on the side of the tank

A transformer nameplate (also called a transformer rating plate or transformer specification plate) is a permanently affixed metal or heavy-duty anodised aluminium tag that carries all the critical technical, electrical, and manufacturing data about the unit. International standards — primarily IEC 60076-1 (Power Transformers: General Requirements) — specify what minimum information must appear on the plate. IEC 60076-1 is freely referenced via the IEC webstore.

On oil-immersed pole-mounted or pad-mounted transformers (the most common types in Nigerian distribution networks), the nameplate is typically welded or bolted to the side of the tank at normal viewing height. On dry-type transformers installed indoors, it appears on the enclosure or the transformer body itself.

Before you sign an acceptance note for any unit, photograph the nameplate, and request the factory test certificate from your transformer dealer for cross-referencing.

Decoding Each Field on the Nameplate

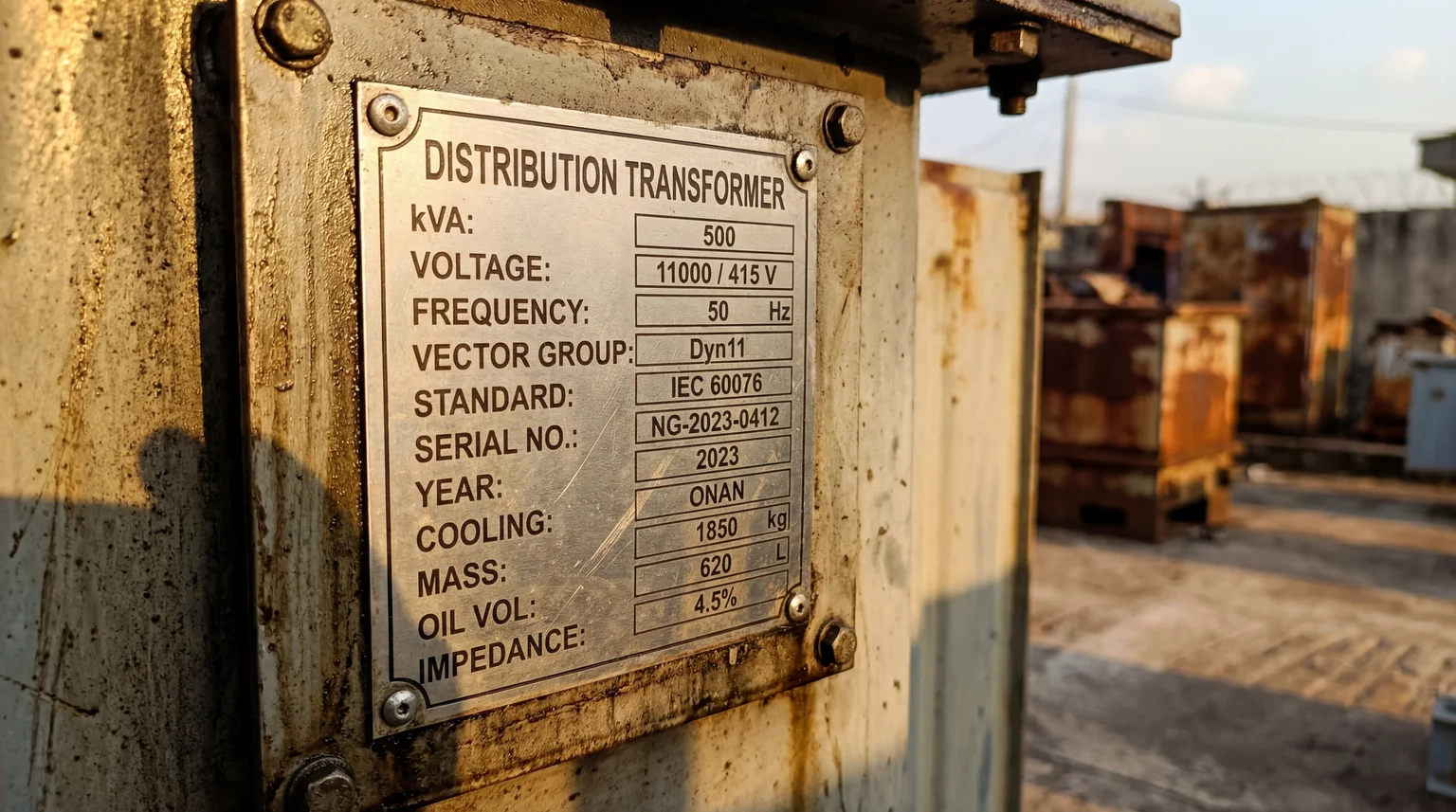

Annotated diagram of a transformer nameplate showing all key fields including kVA rating, voltage, Dyn11 vector group, ONAN cooling class and IEC 60076 standard

1. Manufacturer Name, Country of Origin, and Serial Number

The top section of a standard nameplate identifies the manufacturer. Reputable units will clearly state the manufacturer’s name, country of manufacture, and a unique serial number engraved or laser-etched — not stickered — onto the plate.

The serial number is your link to the factory test report. Every genuine unit shipped by a responsible transformer company is backed by routine test certificates (including winding resistance, voltage ratio, and short-circuit impedance measurements) that must correspond to the serial number on the nameplate. If the serial number on the test certificate does not match the serial number on the plate, reject the unit immediately.

Digital verification tip: Many modern manufacturers now include a QR code or NFC tag on the nameplate, alongside the traditional engraved data. When present, scanning this QR code with a smartphone should direct you to the manufacturer’s official product database or a secure document portal where you can verify the test certificate, warranty card, and product specifications linked to that specific serial number. This is a powerful anti-counterfeiting tool: if the QR code leads to a broken link, a generic webpage, or does not return data matching the physical nameplate, treat this as a significant red flag and contact the manufacturer directly using contact details from their official website — not information provided by the seller. Note that QR codes are not yet universal on transformers sold in Nigeria, so their absence alone is not a red flag — but their presence should always be verified.

2. Rated Capacity (kVA or MVA)

This is one of the most critical figures. Rated capacity — expressed in kilovolt-amperes (kVA) or megavolt-amperes (MVA) — tells you the maximum continuous power the transformer can deliver under stated conditions. Common distribution transformer sizes in Nigeria include 100 kVA, 200 kVA, 300 kVA, 500 kVA, and 1,000 kVA.

Undercapacity is a common fraud vector in the Nigerian market: a supplier may label a 300 kVA unit as 500 kVA. Always match the nameplate kVA to your independently calculated load demand, and never accept a unit where the physical size appears too small for the claimed rating.

3. Voltage Ratings — Primary (HV) and Secondary (LV)

The nameplate lists both the high-voltage (HV) and low-voltage (LV) winding voltages. In Nigeria’s distribution network:

A typical nameplate entry reads: 11,000V / 415V or 33,000V / 415V. Confirm this matches the actual voltage at your connection point. Connecting a transformer rated for 11 kV to a 33 kV line — or vice versa — will cause catastrophic failure.

Tap changer positions are also listed here. Most distribution transformers have off-circuit tap changers offering ±5% adjustment (e.g., ±2.5% steps), allowing the installer to compensate for minor line voltage variations common in Nigerian grid conditions.

4. Frequency

Nigeria operates on a 50 Hz system. The nameplate must state 50 Hz. A transformer rated for 60 Hz (the North American standard) cannot simply be substituted; it will overheat and fail when operated on a 50 Hz grid. This is a common issue with grey-market imports.

5. Number of Phases

The nameplate specifies single-phase or three-phase. Community estate and industrial transformers in Nigeria are almost universally three-phase units. Single-phase units are used in specialised applications. Confirm this field matches your system design.

6. Vector Group

The vector group is an IEC-standardised code (per IEC 60076-1) that describes how the primary and secondary windings are connected and their phase displacement relative to each other. In Nigeria, the overwhelmingly dominant vector group for distribution transformers is Dyn11:

Dyn11 is preferred because it supports three-phase, four-wire systems (three phases plus neutral), provides excellent harmonic suppression, and is the standard configuration used by the distribution companies (DisCos) in Nigeria. Accepting a unit with a different vector group — such as Yyn0 — without engineering review can cause phase mismatches, voltage imbalance, and relay tripping. For more on vector group standards, see the Electrical Engineering Portal’s guide to transformer nameplate interpretation.

7. Cooling Class

The cooling class code tells you how heat is removed from the transformer. For oil-immersed units — the standard in Nigerian distribution — the most common codes are:

In Nigeria’s high-ambient-temperature environment — with average temperatures regularly exceeding 35°C in many locations — the cooling class is particularly important. Ensure the rated capacity is valid at the specified temperature rise and that the cooling equipment (fans if applicable) is installed correctly.

8. Impedance Percentage (%Z)

The percentage impedance (commonly 4%–6% for distribution transformers) is the voltage drop across the transformer under full-load short-circuit conditions, expressed as a percentage of rated voltage. It determines:

For engineers and technically inclined buyers, the maximum prospective short-circuit current at the secondary terminals can be estimated using the standard infinite-bus formula:

Isc = (Irated × 100) / %Z

Worked example: A 500 kVA, 11/0.415 kV transformer with %Z = 5%:

Irated = 500,000 / (√3 × 415) ≈ 695 A
Isc = (695 × 100) / 5 = 13,900 A ≈ 13.9 kA

This means your LV switchgear, bus bars, and circuit breakers at the secondary terminals must be rated to withstand at least 13.9 kA fault current. This is the worst-case (infinite bus) figure — actual fault current will be slightly lower once upstream source impedance is factored in — but it provides the conservative baseline for protection equipment sizing. A discrepancy between the nameplate %Z and the test certificate value therefore has direct implications for your entire protection scheme.

This figure is set by the manufacturer during design and must be verified against the test certificate. A significant discrepancy between the nameplate value and the test result is a red flag for a counterfeit or rewound unit.

9. Insulation Class and Temperature Rise

The insulation class indicates the maximum temperature the winding insulation can tolerate. For oil-immersed transformers, the standard is Class A (mineral oil), with a maximum average winding temperature rise of 65°C above a 40°C ambient (per IEC 60076). Given Nigeria’s climate, this matters: a transformer installed in an unventilated kiosk under direct sun can see ambient temperatures well above the 40°C design reference, accelerating insulation degradation.

10. Standards Compliance and Energy Efficiency Markings

A legitimate nameplate will cite the manufacturing and testing standard — almost universally IEC 60076 in Nigeria and across sub-Saharan Africa. Some manufacturers also reference ISO 9001 (quality management) and SON (Standards Organisation of Nigeria) certification marks. Absence of any standards reference on the nameplate is a serious red flag.

A note on energy efficiency and low-loss transformers: Globally, there is a growing push toward minimum energy performance standards (MEPS) for distribution transformers, driven by the IEC Technical Specification IEC/TS 60076-20 (Energy Efficiency), which defines transformer efficiency tiers and loss limits. Several African countries under the Global Climate Fund (GCF) framework are actively developing or adopting efficiency regulations aligned with these IEC tiers. While Nigeria has not yet mandated a national MEPS for distribution transformers as of early 2026, the direction of travel is clear — and the commercial case is already compelling. Technical losses in distribution transformers are a known contributor to Nigeria’s grid efficiency challenges.

When comparing units, ask your supplier for the nameplate no-load loss (P₀, in kW) and load loss (Pk, in kW) figures, and look for markings such as “Low Loss,” “High Efficiency,” or an explicit reference to IEC/TS 60076-20 loss limits. A low-loss transformer typically costs 5–15% more upfront but reduces energy waste continuously over its 20–25 year lifespan — a significant long-term saving for any estate, factory, or community that pays for its own electricity.

🚩 Red Flags: The “Do Not Pay” Checklist

Genuine engraved transformer nameplate from Elsan Transformer Nigeria showing permanent laser-etched technical data including serial number and IEC 60076 standard compliance

Buying a transformer in Nigeria without knowing what to look for can result in accepting a substandard, rewound, or entirely counterfeit unit. If you observe any of the following, stop the transaction and consult a NEMSA-certified engineer before proceeding.

⚠️ Physical Size Mismatch

For oil-immersed distribution transformers of the same voltage class and cooling method, kVA rating is directly proportional to physical size and weight. A genuine 500 kVA oil-filled unit weighs close to 1,000 kg — roughly two and a half times the mass of a 100 kVA unit. If a supposedly 500 kVA unit appears the same physical size as a 300 kVA unit, the core and windings are almost certainly undersized, meaning the transformer will overheat and fail under normal load. Always ask for the manufacturer’s dimensional and weight datasheet and compare it against the nameplate rating.

⚠️ The Sticker Test

Run your fingernail across the nameplate data. On a legitimate transformer, all critical data — serial number, kVA rating, voltages, vector group, frequency — is engraved, laser-etched, or stamped directly into the metal plate. IEC 60076 and good manufacturing practice require permanent, tamper-evident markings. If any data field is on a sticker, painted on, or can be peeled away, the nameplate has been altered. Reject the unit.

⚠️ The Frequency Trap

Confirm the nameplate states 50 Hz — Nigeria’s national grid frequency. A transformer designed for 60 Hz (the standard in North America) has a smaller, lighter core optimised for the higher frequency. When the same core is energised at 50 Hz on the Nigerian grid, the lower frequency forces the core to sustain flux for longer each cycle, driving magnetic flux density approximately 20% higher than the design limit. This causes core saturation, a surge in magnetising current, excessive heat in both the core and windings, accelerated insulation degradation, and — if sustained — catastrophic failure. The transformer will run audibly noisier than expected and will run hot from the moment of energisation. A nameplate showing only 60 Hz, or showing 50/60 Hz on a unit clearly sized for a 60 Hz design, is a disqualifying finding.

⚠️ Missing or Wrong Vector Group

If the vector group field is absent from the nameplate, this violates IEC 60076 and is grounds for immediate rejection. If the vector group is present but is not Dyn11 (or the alternative your consulting engineer has specifically approved for your installation), you face a serious technical compatibility problem. Nigeria’s distribution network operates on Dyn11 transformers. A different vector group — say, Yyn0 — introduces a phase angle mismatch with the existing network. This mismatch causes circulating currents, voltage imbalance, and protective relay miscoordination at the point of connection to the DisCo’s network, making safe parallel operation or integration with the grid technically impossible without engineering intervention. In practice this means the unit cannot safely be connected as a like-for-like replacement or addition on a Dyn11 network.

Additional Red Flags

Engaging a reputable transformer supplier who provides factory test certificates, country-of-origin documentation, and a traceable serial number is the single most effective way to avoid substandard units. You can browse certified product options at Elsan Transformer Nigeria.

Matching the Nameplate to the Factory Test Certificate

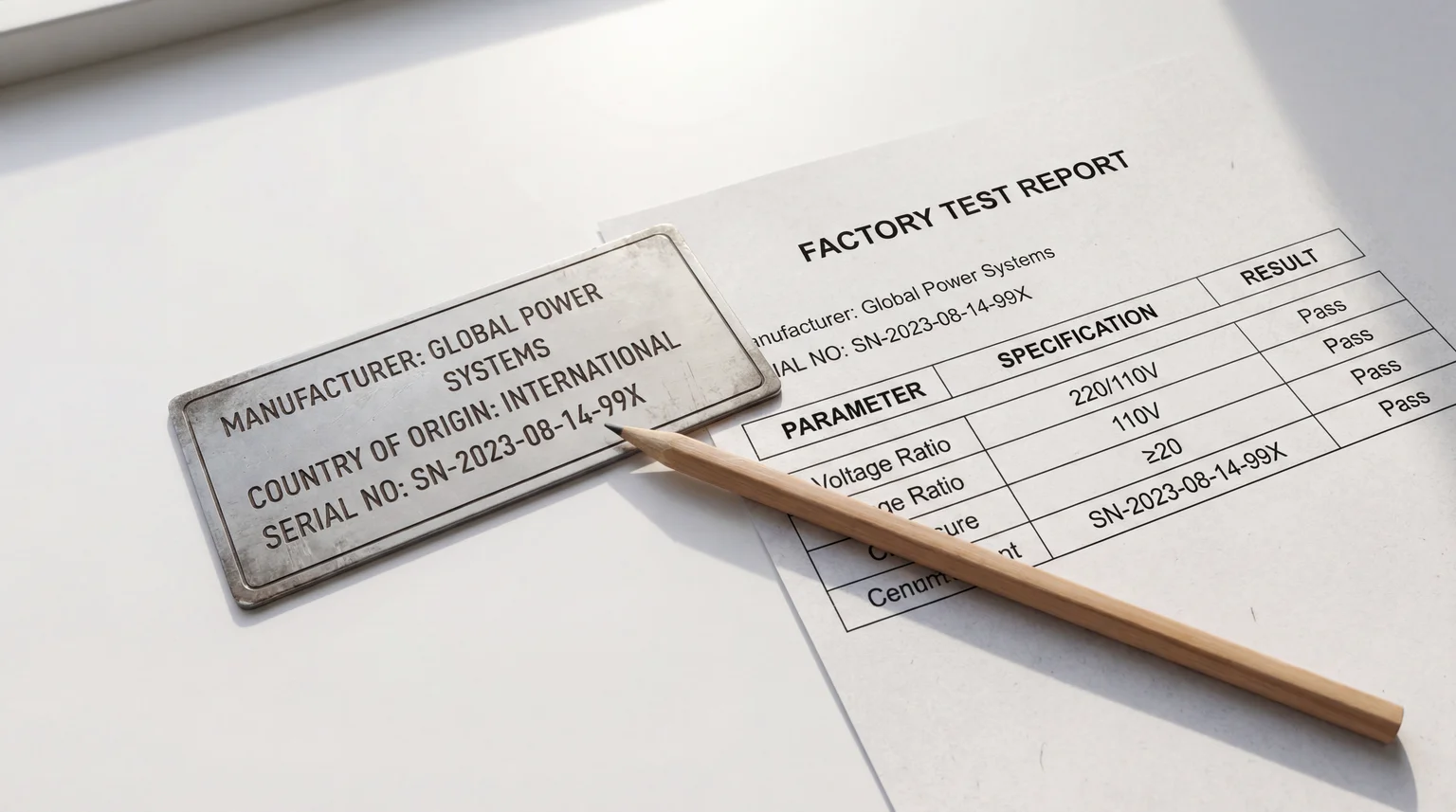

Top-down flat lay of a transformer factory test certificate and metal nameplate side by side on a desk with a pencil pointing to matching serial number fields

Every legitimate transformer must arrive with a factory test certificate (also called a routine test report) that corresponds 1:1 with the nameplate serial number. Under IEC 60076, routine tests include:

When you receive a unit, compare the following fields directly between the nameplate and the certificate:

Nameplate FieldMust Match Certificate
Serial numberTest report serial number
Rated kVAkVA base stated in test report
HV / LV voltagesVoltage ratio test result
Vector groupPolarity/phase displacement test result
% ImpedanceShort-circuit impedance measurement
No-load loss (kW)No-load loss measurement

A discrepancy in any of these fields — especially in the impedance or voltage ratio — means the transformer may have been rewound, the nameplate may have been swapped from another unit, or the test certificate may be fabricated. Do not energise the unit until you have received a satisfactory written explanation from the transformers dealers or manufacturer.

For independent verification, NEMSA maintains a Transformer Repairs and Testing Workshop in Lagos (Ijora), and its 19 Inspectorate Field Offices nationwide can assist with inspection and certification. Visit NEMSA’s official website for office locations and contact details.

A Quick-Reference Nameplate Checklist for Nigerian Buyers

Before accepting any transformer delivery, run through this checklist:

Frequently Asked Questions (FAQs)

Q1: What is a transformer nameplate and why is it important in Nigeria?
A transformer nameplate is the permanently fixed metal plate that carries all technical data about a transformer, including its capacity, voltages, frequency, vector group, and standards compliance. In Nigeria, it is essential because it allows buyers to verify they are receiving the unit they paid for, and it must be cross-checked against the factory test certificate before installation.

Q2: What voltage ratings should I expect on a distribution transformer in Nigeria?
Standard Nigerian distribution transformers are rated 11,000V / 415V (11 kV network) or 33,000V / 415V (33 kV network) on the primary/secondary voltage fields. The secondary voltage of 415 V (line-to-line) delivers the standard 240 V phase-to-neutral supply that Nigerian residential and commercial consumers receive.

Q3: What does Dyn11 mean on a transformer nameplate?
Dyn11 is a vector group code per IEC 60076-1. D = delta-connected HV winding; y = star-connected LV winding; n = neutral available on LV side; 11 = 30° phase lag. It is the standard vector group for Nigerian distribution transformers because it supports three-phase, four-wire systems and provides good harmonic suppression.

Q4: What is ONAN cooling class on the nameplate?
ONAN stands for Oil Natural Air Natural — the transformer uses mineral oil as a coolant, with heat dissipating naturally through tank walls and radiators without fans or pumps. It is the most common cooling class for distribution transformers in Nigeria. No additional cooling equipment is needed.

Q5: How do I verify a transformer nameplate is genuine?
Compare the nameplate serial number against the factory test certificate. Call or email the manufacturer using contact details on their official website (not information provided by the seller). Check that the nameplate data is engraved or etched, not stickered. Engage a NEMSA-licensed electrical engineer to physically inspect the unit before commissioning.

Q6: What should I do if the nameplate and test certificate do not match?
Do not accept the unit. Contact your supplier in writing, citing the specific discrepancies. Request a replacement unit with a verifiable test certificate, or arrange for the unit to be tested independently at NEMSA’s transformer testing facility in Lagos before energisation.

Q7: Are there local Nigerian standards for transformer nameplates?
Nigeria primarily adopts IEC 60076 as the governing standard for power transformers, administered through the Standards Organisation of Nigeria (SON) and enforced by NEMSA. The Nigerian Electricity Supply and Installation Standards (NESIS) Regulations 2015 also set requirements for distribution transformer specifications in the electricity supply industry.

Conclusion: Knowledge Is Your Best Protection

Reading a transformer nameplate is not a skill reserved for engineers — it is essential knowledge for any Nigerian individual, community, or business investing in transformer infrastructure. The nameplate is your contract with the manufacturer. Every field — from kVA rating and voltage to vector group and impedance — tells you whether the unit will safely serve your needs, comply with Nigerian regulations, and last its expected 20–25 year service life.

Always work with a credible transformer company that provides full documentation: factory test certificates, warranty terms, country-of-origin paperwork, and post-installation support. Before you finalise any purchase, review our complete transformer buying guide and explore our certified product range to see how nameplate data translates into real-world performance for Nigerian conditions.

When in doubt, engage a NEMSA-licensed electrical engineer. The cost of a professional review is a fraction of the cost of a failed transformer — or worse, a fire.
