IEC 60076 Explained: What the Standard Means for Nigerian Buyers

by Elsan Editorial Team 7 min read
Elsan Transformer IEC 60076 compliant oil-immersed distribution transformer nameplate showing kVA rating and voltage specification Nigeria

IEC 60076 is the international standard published by the International Electrotechnical Commission (IEC) that governs the design, manufacture, testing, and commissioning of power transformers worldwide. In Nigeria, compliance with IEC 60076 is enforced by the Nigerian Electricity Management Services Agency (NEMSA) under the Electricity Act 2023, in collaboration with the Standards Organisation of Nigeria (SON) and the Nigerian Electricity Regulatory Commission (NERC). For Nigerian buyers, a transformer bearing IEC 60076 certification means it has been independently verified to meet internationally recognised safety, efficiency, and performance benchmarks — reducing the risk of equipment failure, grid incidents, and regulatory penalties.

Elsan Transformer IEC 60076 compliant oil-immersed distribution transformer nameplate showing kVA rating and voltage specification Nigeria

What IEC 60076 Covers

IEC 60076 is not a single document. It is a multi-part series of international standards developed by IEC Technical Committee 14 (TC14): Power Transformers. Together, the parts define every measurable aspect of how a power transformer should be built, tested, and operated.

The standard applies to power transformers with rated voltages up to 765 kV, covering both single-phase and three-phase units, autotransformers, and reactors. It is relevant for both indoor and outdoor installations — meaning it covers everything from a 100 kVA distribution transformer on a neighbourhood pole to a large 132/33 kV substation transformer in a DisCo network.

Originally introduced in 1953, IEC 60076 has been revised multiple times to reflect advances in materials science, insulation technology, and power system design. It is today recognised and adopted in over 100 countries, making it the universal engineering baseline for transformer procurement worldwide.

For Nigerian buyers — whether you are an industrialist procuring a distribution transformer, a developer specifying equipment for an embedded power project, or a DisCo engineer evaluating imported stock — understanding IEC 60076 compliance is not a technical luxury. It is a procurement necessity.

Key Parts of the IEC 60076 Standard

Infographic showing the seven key parts of the IEC 60076 power transformer standard most relevant to Nigerian buyers including temperature rise insulation and short-circuit withstand

The IEC 60076 series is modular. Each part addresses a distinct domain of transformer engineering. Below are the parts most relevant to buyers in the Nigerian market:

IEC 60076-1: General Requirements

This is the foundational document. It defines rated power, voltage levels, vector groups, tapping arrangements, tolerances, and nameplate requirements. Any compliant transformer must first satisfy Part 1 before the other parts apply.

IEC 60076-2: Temperature Rise

This part sets permissible temperature rise limits for windings and insulating liquid under normal operating conditions. Nigeria’s high ambient temperatures — regularly exceeding 40°C in the dry season — make this part especially important. A transformer specified only for 20°C ambient conditions will overheat in Kano or Maiduguri, shortening its service life significantly.

IEC 60076-3: Insulation Levels and Dielectric Tests

Part 3 specifies the dielectric tests that prove a transformer can withstand voltage surges, lightning impulses, and switching transients. Nigeria’s distribution grid is well-known for voltage fluctuations and surge events, so dielectric compliance here is a direct safeguard against failure during storms or load switching.

IEC 60076-5: Short-Circuit Withstand

This part defines how a transformer must mechanically and thermally survive short-circuit conditions. Transformers that fail this requirement — a common characteristic of substandard imports — can be catastrophically destroyed by a fault that a compliant unit would survive intact.

IEC 60076-7: Loading Guide for Oil-Immersed Transformers

Part 7 models how thermal aging accelerates under different load and ambient temperature combinations. It provides the technical basis for load management decisions by utilities and large consumers. For Nigerian operators running transformers above nameplate capacity during peak demand — a common field reality — this guidance is critical.

IEC 60076-10: Sound Level Determination

Part 10 defines the measurement of transformer noise. This is increasingly relevant for urban installations in Lagos, Abuja, and Port Harcourt where transformers are located near commercial and residential properties.

IEC 60076-11: Dry-Type Transformers

This part governs the growing category of dry-type (air-cooled) transformers increasingly specified for modern high-rise buildings, data centres, and indoor industrial applications across Nigeria’s expanding commercial real estate sector.

When reviewing a technical datasheet or factory test report, ask the supplier to confirm which IEC 60076 parts the transformer was tested against. A credible supplier will list each relevant part by number.

Why IEC 60076 Compliance Matters in Nigeria

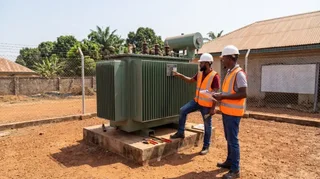

Nigerian electrical engineers inspecting an oil-immersed distribution transformer substation before NEMSA commissioning certification

1. NEMSA Enforcement

The Nigerian Electricity Management Services Agency (NEMSA), established under the NEMSA Act 2015 and now operating under the Electricity Act 2023, is the sole statutory body authorised to carry out technical inspection, testing, and certification of all electrical installations in Nigeria. NEMSA’s mandate explicitly covers transformers — including the inspection and certification of transformer substations prior to commissioning.

NEMSA’s Technical Standards and Inspectorate Services Department operates 17 Electrical Inspectorate Field Offices located nationwide. Its engineers carry out pre-commissioning inspections of transformer substations and will reject installations where equipment does not meet applicable standards — including IEC 60076 requirements as adopted by Nigeria’s regulatory framework.

Buying a non-compliant transformer is not merely a technical risk. It is a legal and commercial one: equipment that fails NEMSA inspection cannot be legally commissioned, meaning a capital investment sits idle until replaced or upgraded.

2. Protecting Against Substandard Imports

Nigeria’s power sector has been historically plagued by substandard imported electrical materials. NEMSA’s own leadership has publicly identified this as one of the industry’s most persistent challenges. IEC 60076 test certificates — particularly type test reports from accredited third-party laboratories — provide an objective, internationally verifiable record that a specific transformer design has been independently validated. This is your first line of defence against counterfeit or subgrade equipment.

3. Grid Compatibility

Nigeria’s grid operates at specific voltage levels and frequencies (33 kV, 11 kV, 415/240 V; 50 Hz) with vector group requirements aligned with IEC conventions. The Transmission Company of Nigeria (TCN) and the Nigerian Electricity Supply and Installation Standards (NESIS) Regulations 2015 issued by NERC reference IEC standards as the normative baseline for equipment specifications. A transformer designed outside this framework introduces compatibility risks in the switchgear, protection relay, and metering systems.

4. Total Cost of Ownership

A transformer that meets IEC 60076 efficiency and loss requirements (no-load loss and load loss limits) will consume measurably less energy over its 25–35 year design life than a substandard alternative. For commercial and industrial buyers, this difference in operational expenditure over the asset lifetime typically exceeds the initial price premium for a certified unit several times over.

How to Verify IEC 60076 Compliance Before You Buy

Five-step infographic for verifying IEC 60076 transformer compliance before purchasing in Nigeria including type test certificates and NEMSA documentation

Verification is a structured process, not a single document check. Follow these steps when procuring any transformer for installation in Nigeria:

Step 1 — Request the Type Test Certificate Ask for the complete type test report, not just a summary certificate. The report should be issued by an internationally accredited independent test laboratory (e.g., KEMA, CESI, CPRI, or an equivalent ILAC-accredited body). Confirm the report covers the IEC 60076 parts relevant to your transformer type.

Step 2 — Check the Routine Test Reports Every transformer unit — not just the design prototype — must have a routine test report. This confirms that the individual unit leaving the factory was built and tested to the same standard. Routine tests under IEC 60076-1 include measurement of winding resistance, voltage ratio, vector group, no-load loss, and impedance voltage.

Step 3 — Verify NEMSA Compliance Readiness Before delivery, confirm the supplier’s documentation package meets NEMSA’s inspection requirements. A compliant supplier will provide: type test certificates, routine test reports, nameplate data aligned with IEC standards, and installation manuals. Elsan Transformer and other quality-focused Nigerian suppliers pre-package this documentation as part of their delivery.

Step 4 — Specify IEC 60076 in Your Purchase Order Your purchase contract should explicitly state: “This transformer shall be designed, manufactured, and tested in accordance with IEC 60076 (relevant parts, latest editions).” This creates an enforceable contractual commitment.

Step 5 — Engage a Third-Party Inspector for Large Orders For transformer procurement above 500 kVA, consider engaging a third-party inspection body to witness factory acceptance testing (FAT) at the manufacturer’s facility. This is standard practice for TCN and DisCo procurement and provides independent assurance before a unit ships.

IEC 60076 vs. Other Standards: What Nigerian Buyers Need to Know

You may encounter transformers marketed to other national standards. Here is how they map:

StandardUsed InRelationship to IEC 60076
IEEE C57 seriesUSA, CanadaDifferent methodology; not directly interchangeable
GB/T 1094ChinaClosely harmonised with IEC 60076; request IEC test reports for export units
EN IEC 60076Europe (EU)IEC 60076 adopted without modification by CENELEC
BS 171 (retired)UK (historical)Superseded by IEC 60076; legacy units may still be in Nigerian service

For Nigerian installations, IEC 60076 is the operative standard. If a supplier offers a transformer certified only to IEEE C57, confirm it has also been verified against IEC 60076 parameters — particularly for insulation levels, which differ between the two frameworks.

Transformer Types Covered by IEC 60076

Understanding which transformer category applies to your project helps you identify the correct parts of IEC 60076 to reference:

If you are unsure which specification to apply to your project, the Elsan Transformer product range covers IEC-compliant units across all major distribution voltage levels used in Nigeria, with full documentation support.

The Role of SON, NERC, and NEMSA in IEC Compliance

Diagram showing the relationship between SON NERC and NEMSA in enforcing IEC 60076 transformer standards compliance in Nigeria

Three government bodies share responsibility for transformer standards enforcement in Nigeria, and each has a distinct function:

These three agencies collaborate on a standing committee basis. IEC 60076 is therefore not an optional reference in Nigeria — it sits at the foundation of the country’s legally enforceable electricity standards framework.

Frequently Asked Questions (FAQs)

What does IEC 60076 stand for?

IEC 60076 is the designation for the Power Transformers standard series published by the International Electrotechnical Commission. “IEC” refers to the issuing body, and “60076” is the document number. The standard is divided into multiple numbered parts, each covering a specific technical domain (general requirements, temperature rise, insulation tests, etc.).

Is IEC 60076 mandatory in Nigeria?

While IEC 60076 is not a standalone Nigerian law, it is the normative technical reference embedded in Nigeria’s NESIS Regulations (issued by NERC) and enforced by NEMSA as part of its mandate under the Electricity Act 2023. In practice, any transformer connected to the Nigerian grid — from distribution level upward — is expected to comply with IEC 60076 parameters. Non-compliant equipment can be rejected during NEMSA inspection.

How do I check if a transformer is IEC 60076 compliant?

Request the type test report and routine test report from the manufacturer. Type test reports must be issued by an accredited independent laboratory. Verify that the report references the correct IEC 60076 parts for your transformer category and that the tested ratings match the unit being supplied.

What is the difference between a type test and a routine test under IEC 60076?

A type test validates the design of a transformer — it is performed once on a prototype or representative unit and demonstrates that the design meets all IEC performance and safety criteria. A routine test is performed on every individual unit manufactured and confirms production consistency. Both are required for full IEC 60076 compliance.

Can I buy a transformer in Nigeria that only meets Chinese GB/T 1094 standards?

GB/T 1094 is largely harmonised with IEC 60076, and many Chinese manufacturers produce transformers that satisfy both standards. However, you should always request IEC 60076 type test certificates from an internationally accredited laboratory — not just a Chinese domestic certificate — for transformers intended for the Nigerian grid.

What voltage levels does IEC 60076 apply to?

IEC 60076 applies to power transformers with rated voltages up to 765 kV. This covers all transformer classes used in Nigeria’s distribution and transmission networks, including 33/11 kV, 132/33 kV, and 330/132 kV units.

Where can I buy IEC 60076-compliant transformers in Nigeria?

Reputable Nigerian transformer suppliers maintain full IEC documentation packages as standard practice. Explore the Elsan Transformer product catalogue for IEC 60076-compliant distribution and power transformers suited to the Nigerian grid, or visit elsantransformer.com.ng for specifications and technical support.

Summary: What Nigerian Buyers Should Take Away

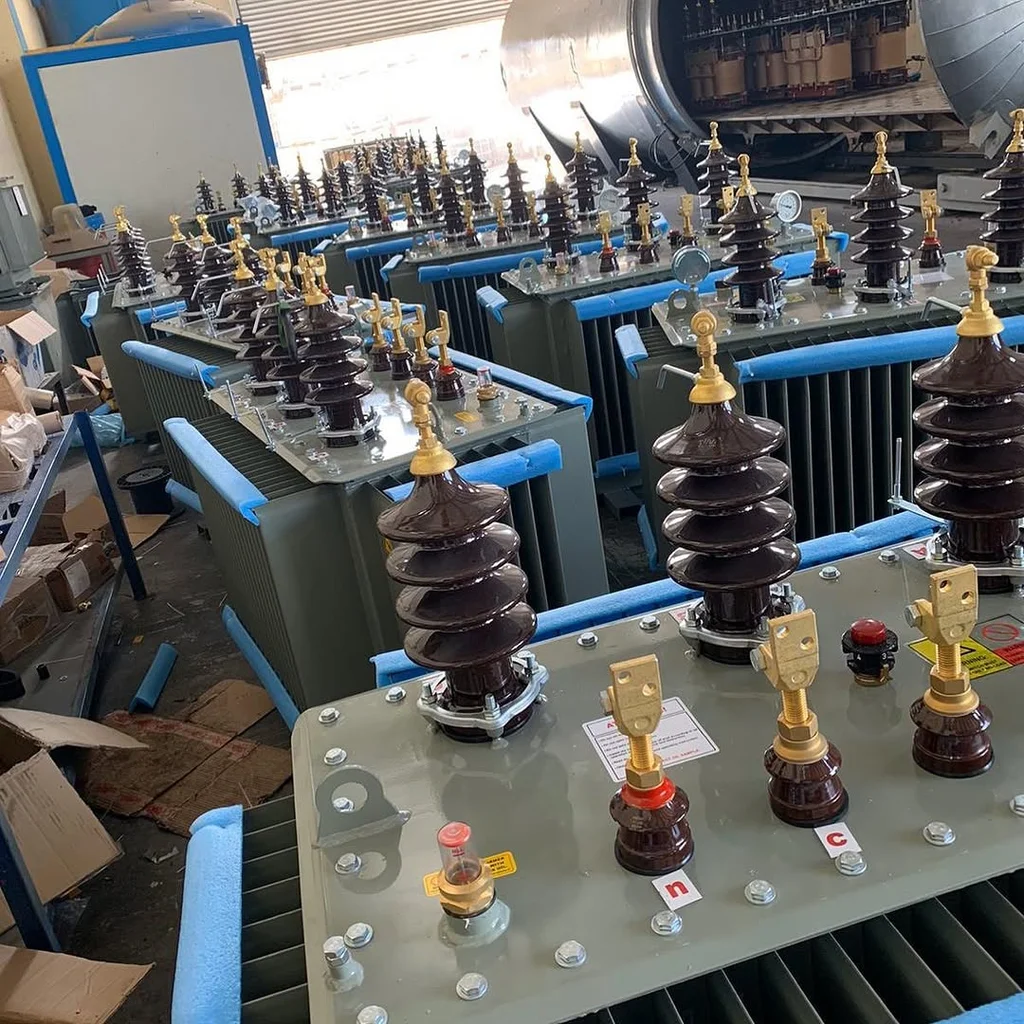

Elsan Transformer IEC 60076 compliant oil-immersed distribution transformers ready for delivery to Nigerian grid projects

IEC 60076 is the engineering language that separates a quality transformer from a liability. For Nigerian buyers operating in an environment where NEMSA enforces compliance, grid conditions are challenging, and the cost of equipment failure is high, understanding this standard — and insisting on it in every purchase — is essential.

The standard covers everything from how a transformer is wound and insulated to how it handles overloads, short circuits, and thermal aging. It is enforced in Nigeria through the combined framework of SON standards, NERC’s NESIS Regulations, and NEMSA’s field inspections. A certified, compliant transformer is not just safer — it is a commercially sound investment that will perform reliably for decades.

Before your next transformer purchase, read our complete transformer buying guide or browse our full product range to find IEC-compliant units matched to Nigerian grid specifications.

Further Reading and References

This article is intended for educational and procurement guidance purposes. Always consult a qualified electrical engineer and engage NEMSA-licensed contractors for transformer installation and commissioning in Nigeria.
